Conwell Medical Co., Ltd.



■ Stable fractures of the lower leg and ankle
■ Acute ankle sprains
■ Post-op ankle surgery


■ Designed with a wider foot bed for comfort and stability.
■ The insole is effective of thermolysis to keep foot dry and also has the shock
   absorption capability can reduce ankle pressure.
■ Rocker bottom helps to promote natural gait and reduce plantar pressures.
■ Plush soft-foam wrap for maximum comfort and easy to use.
Size:S . M . L . XL
SIZE Max. Foot Length US Women's shoe US Men's shoe Euro shoe
S 25 cm 6 - 8 4.5 - 7 36 - 40
M 28 cm 8.5 - 11.5 7.5 - 10.5 40 - 44
L 30 cm 11.5 - 13.5 10.5 - 12.5 44 - 47
XL 31 cm > 13.5 > 12.5 > 47

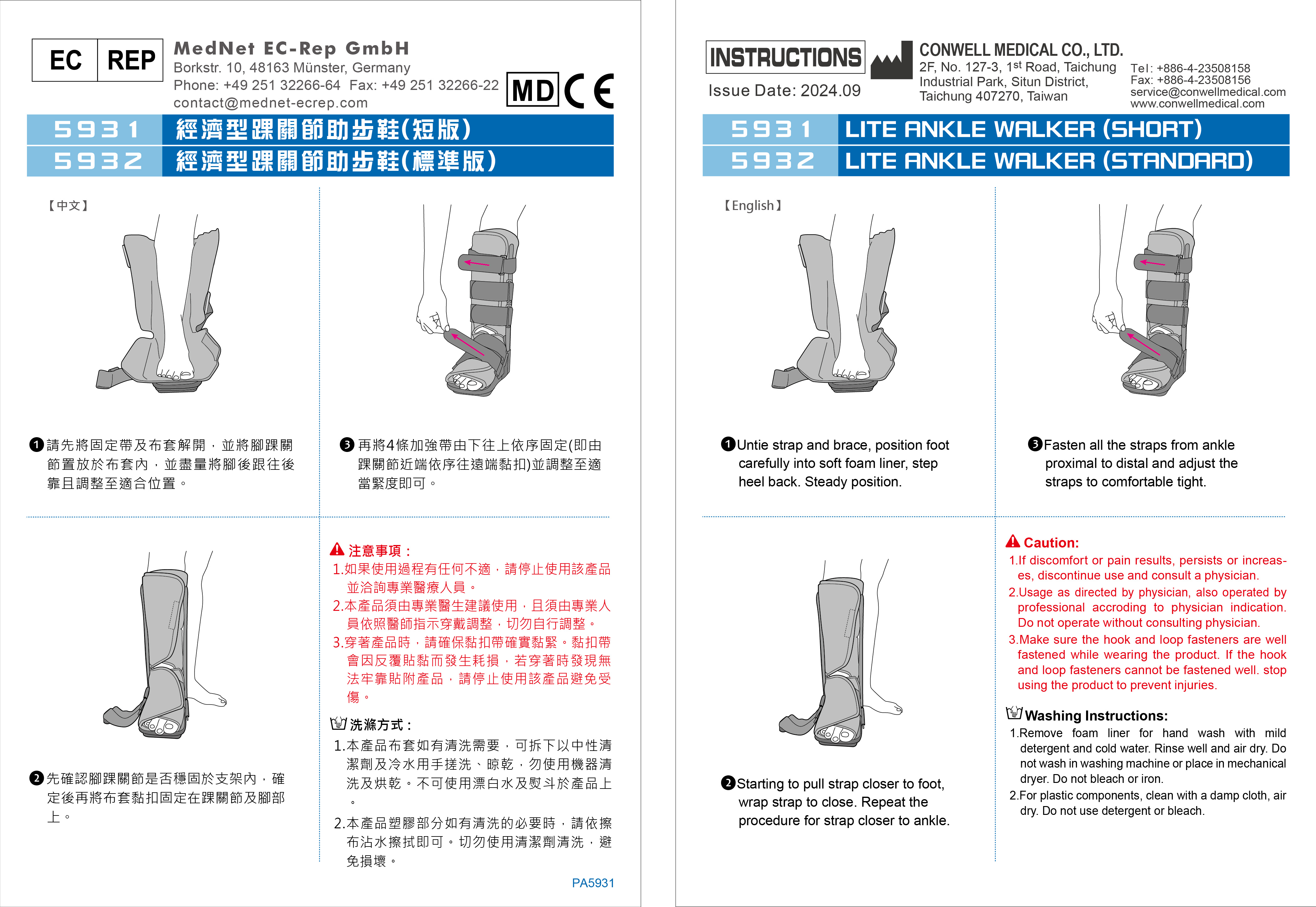

Product Instruction Manualor

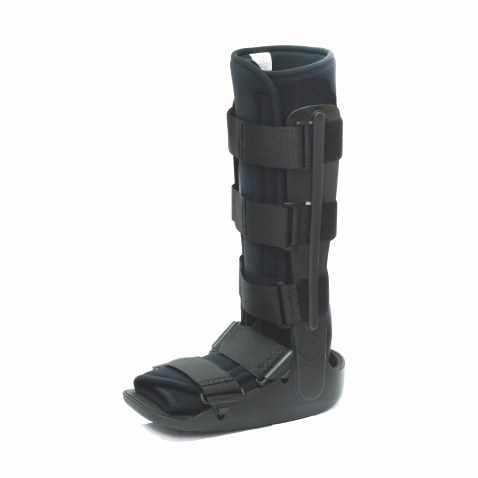

THE CONWELL LITE ANKLE WALKER (STANDARD) is indicated following acute ankle sprains, stable fractures and injuries of the foot.

❶Untie strap and brace, position foot carefully into soft foam liner, step heel back. Steady position (Fig. A).

❷Starting to pull strap closer to foot, wrap strap to close. Repeat the procedure for strap closer to ankle (Fig. B).

❸ Fasten all the straps from ankle proximal to distal and adjust the straps to comfortable tight (Fig. C).



1.If discomfort or pain results, persists or increases, discontinue use and consult a physician.

2.Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without consulting physician.

3.Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be fastened well. stop using the product to prevent injuries.

Washing Instructions:

Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing machine or place in mechanical dryer. Do not bleach nor iron.
