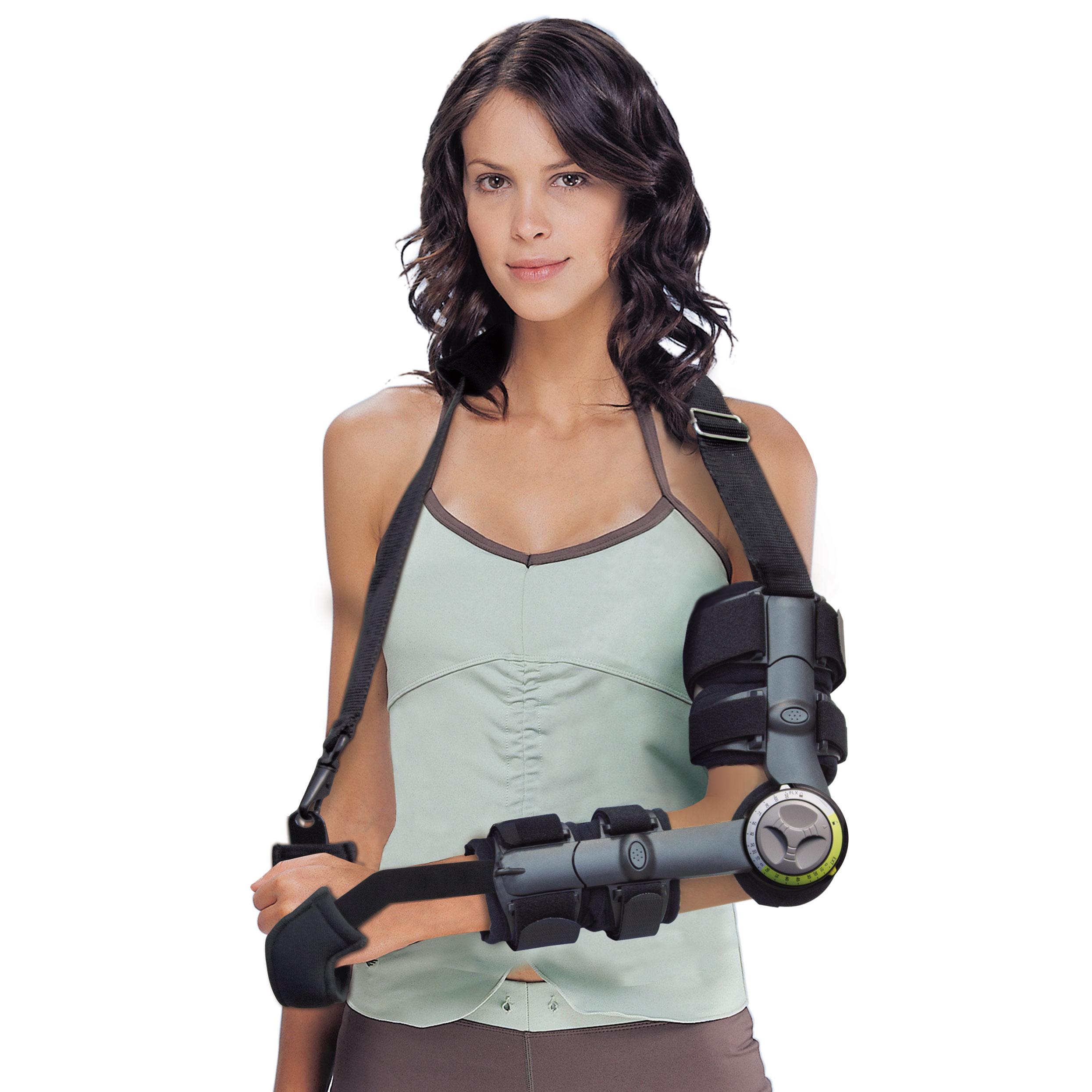

53270 LENGTH ADJUSTABLE ROM ELBOW BRACE ( LEFT )

Indications

■ Elbow brace is designed to handle post-op
■ Elbow arthroscopy, severe elbow strains and ligament
5327

Features

■ Simple rotate ROM setting design provides fast and easy ROM setting.
■ Flexion limit of 0° to 120° and extension limit of 0° to 90°.
■ The brace length is extendable from 14”to 16.5”.
■ Flexible hinge wings provide great stabilization.
■ Plush soft-foam wrap for maximum comfort.
■ Hook and loop closures that adjust for the most comfortable and easy fit.
  • 5327
  • 5327
  • 5327

Size:ONE SIZE

SIZE              Forearm Circumference                            Length ( LEFT )
ONE SIZE                    14 inch - 16 inch                                    35 cm - 40 cm

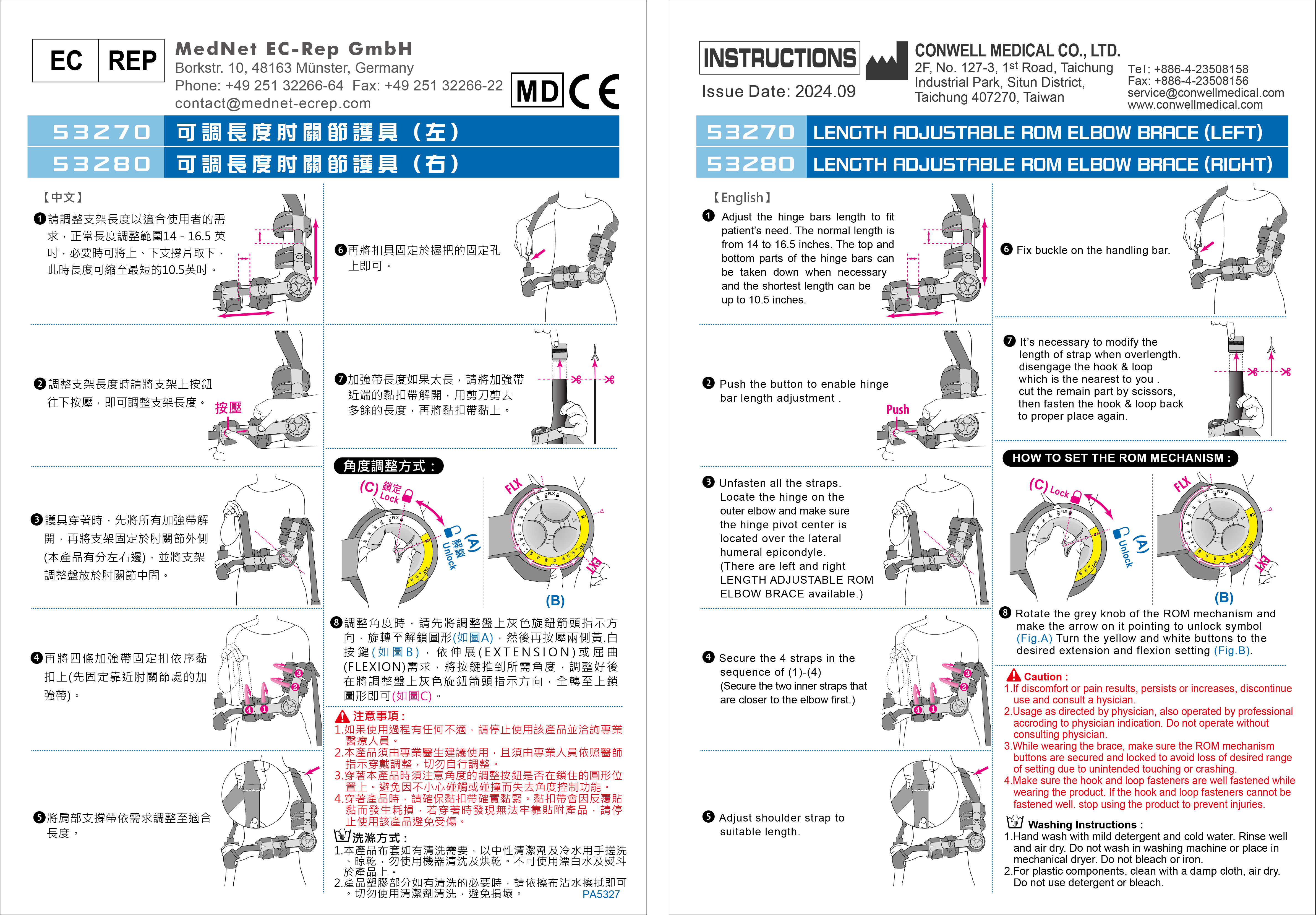

Product Instruction Manualor

THE CONWELL LENGTH ADJUSTABLE ROM ELBOW BRACE is indicated for post-operative immobilization of the elbow joint.

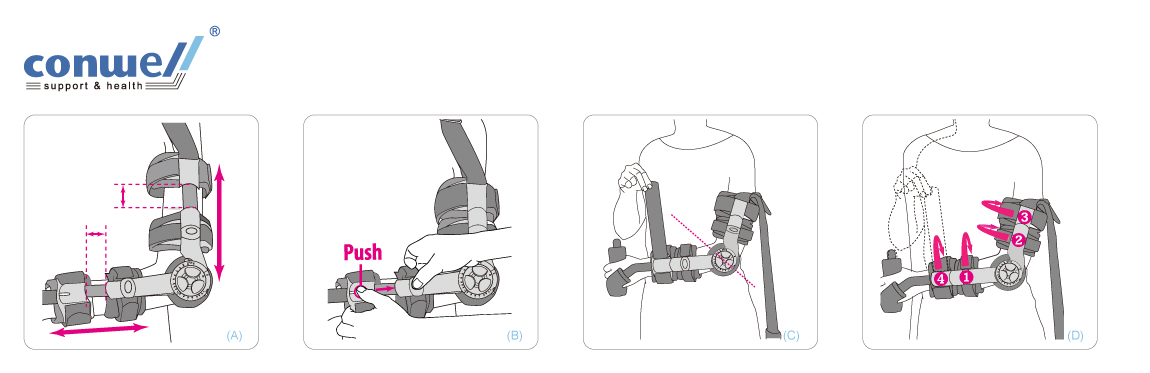

❶ Adjust the hinge bars length to fit patient's need. The normal length is from 14 to 16.5 inches. The top and bottom parts of the hinge bars can be taken down when necessary and the shortest length can be up to 10.5 inches(Fig A).

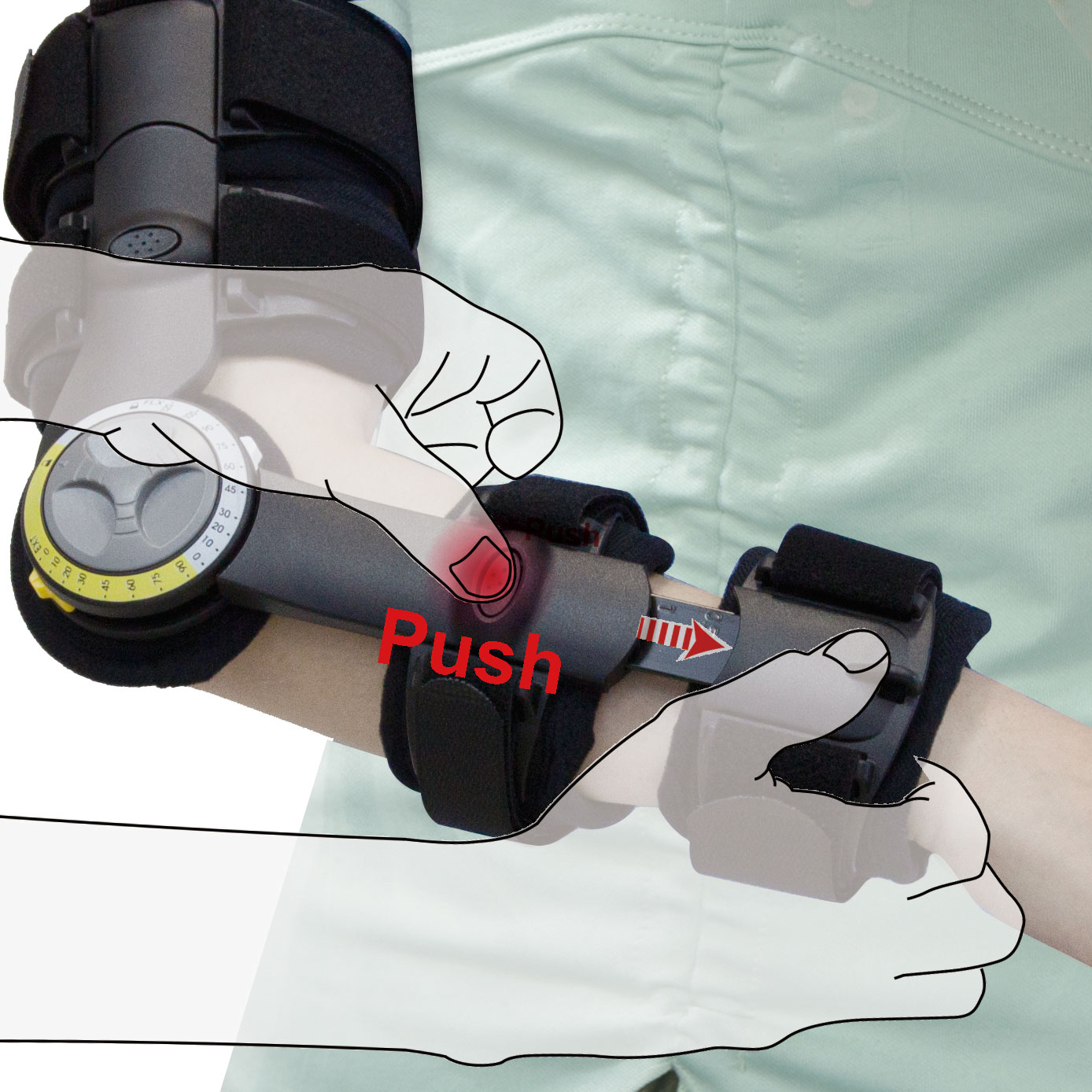

❷ Push the button to enable hinge bar length adjustment(Fig B).

❸ Unfasten all the straps. Locate the hinge on the outer elbow and make sure the hinge pivot center is located over the lateral humeral epicondyle(Fig C).
   (There are left and right LENGTH ADJUSTABLE ROM ELBOW BRACE available.)

❹ Secure the 4 straps in the sequence of (1)-(4) (Secure the two inner straps that are closer to the elbow first.)(Fig D)

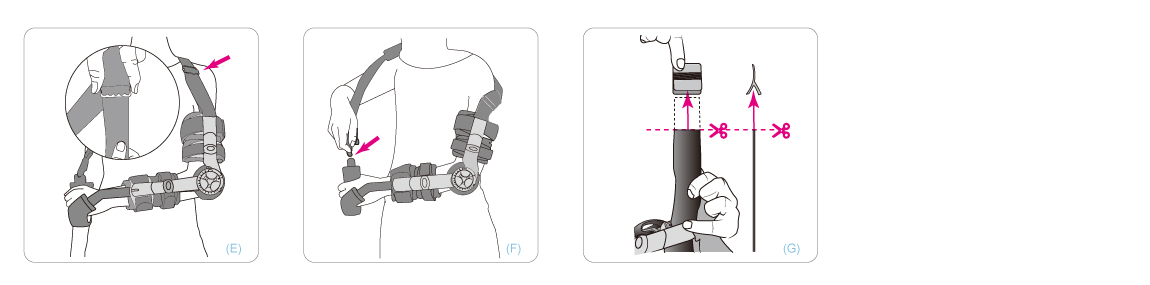

❺ Adjust shoulder strap to suitable length(Fig E).

❻ Fix buckle on the handling bar(Fig F).

❼ It's necessary to modify the length of strap when overlength. disengage the hook & loop which is the nearest to you . cut the remain part by scissors, then fasten the hook & loop back to proper place again(Fig G).


HOW TO SET THE ROM MECHANISM :

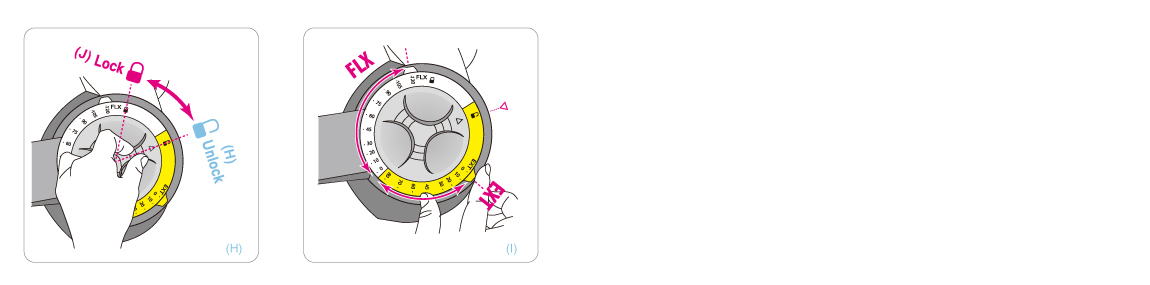

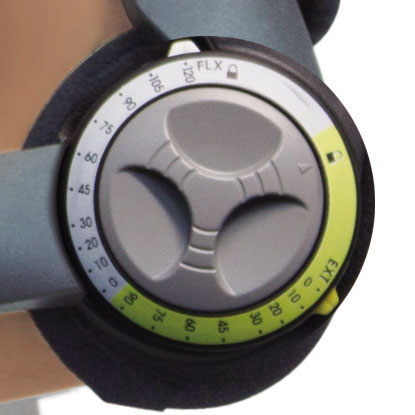

❽ Rotate the grey knob of the ROM mechanism and make the arrow on it pointing to unlock symbol (Fig H) Turn the yellow and white buttons to the desired extension and flexion setting(Fig I) .




Caution:

1.If discomfort or pain results, persists or increases, discontinue use and consult a hysician.
2.Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without consulting physician.
3. While wearing the brace, make sure the ROM mechanism buttons are secured and locked to avoid loss of desired range of setting due to unintended touching or crashing.
4. Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be fastened well. stop using the product to prevent injuries.

Washing Instructions:

Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing machine or place in mechanical dryer. Do not bleach nor iron.
