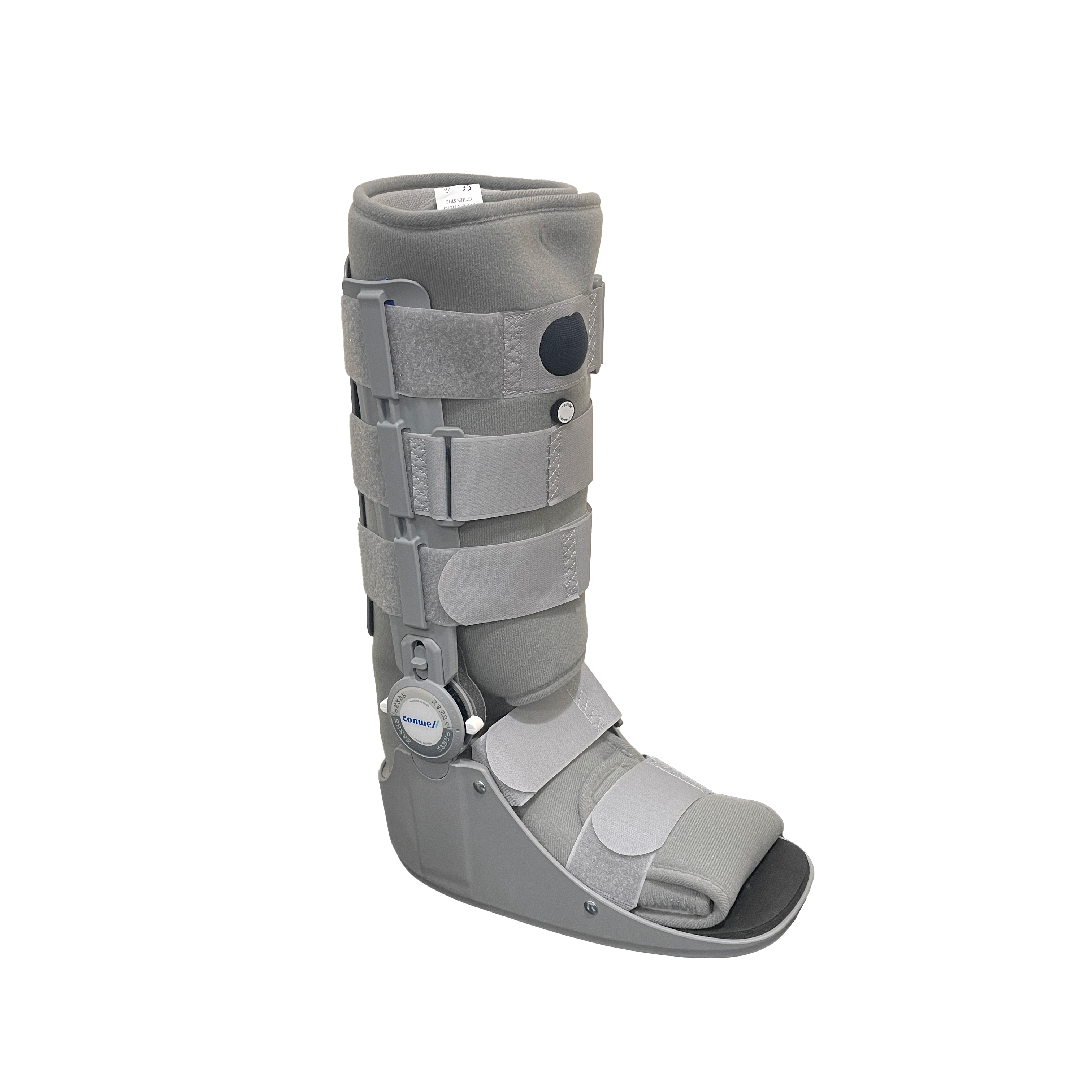

Features

■ Air can be easily adjusted to achieve desired compression and custom fit.
■ Patented ROM with orange safety lock mechanism and easy
   ROM setting application.
■ ROM setting between 0°~ 40° plantar-flexion and 0°~ 40° dorsi-flexion
   in 10° increments.
■ Soft-foam with breathable fabric lining keeps you dry and comfortable.
■ Fits left and right foot

•

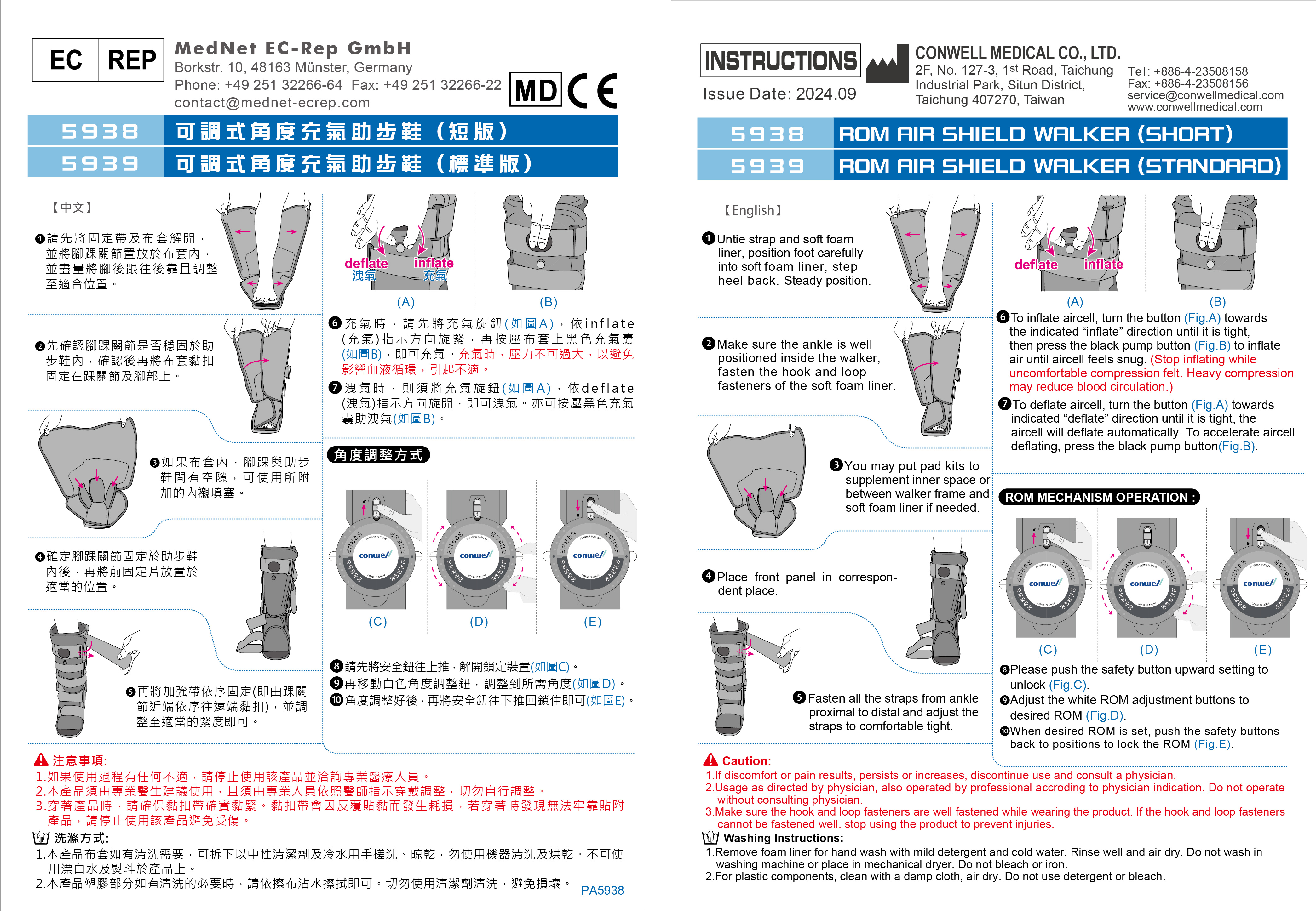

❶Untie strap and soft foam liner, position foot carefully into soft foam liner, step heel back. Steady position. ​(Fig.A)

❷Make sure the ankle is well positioned inside the walker, fasten the hook and loop fasteners of the soft foam liner. ​(Fig.B)

❸You may put pad kits to supplement inner space or between walker frame and soft foam liner if needed. (Fig.C)

❹Place front panel in correspondent place. (Fig.D)

❺Fasten all the straps from ankle proximal to distal and adjust the straps to comfortable tight. (Fig.E)

❻To inflate aircell, turn the button (Fig.F) towards the indicated “inflate” direction until it is tight, then press the black

pump button (Fig.G) to inflate air until aircell feels snug. (Stop inflating while uncomfortable compression felt. Heavy

compression may reduce blood circulation.)

❼To deflate aircell, turn the button (Fig.F) towards indicated “deflate” direction until it is tight, the aircell will deflate

automatically. To accelerate aircell deflating, press the black pump button (Fig.G).


❽Please push the safety button upward setting to unlock (Fig.H).

❾Adjust the white ROM adjustment buttons to  desired ROM (Fig.I).

❿When desired ROM is set, push the safety buttons back to positions to lock the ROM (Fig.J).


Caution:
1.If discomfort or pain results, persists or increases, discontinue use and consult a physician.

2.Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without

consulting physician.

3.Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be

fastened well. stop using the product to prevent injuries.


Washing Instructions:
1.Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing

machine or place in mechanical dryer. Do not bleach nor iron.

2.For plastic components, clean with a damp cloth, air dry. Do not use detergent or bleach.
