Features

■ COOLMAX^® fabric lining keeps you cool and comfortable.
■ Patented ROM hinge allows easy and fast range of motion setting, tool-free.
■ Extension limit of 0°-90° and flexion limit of 0°-105°.
■ Full open wrap-around design for easy application.

•
•

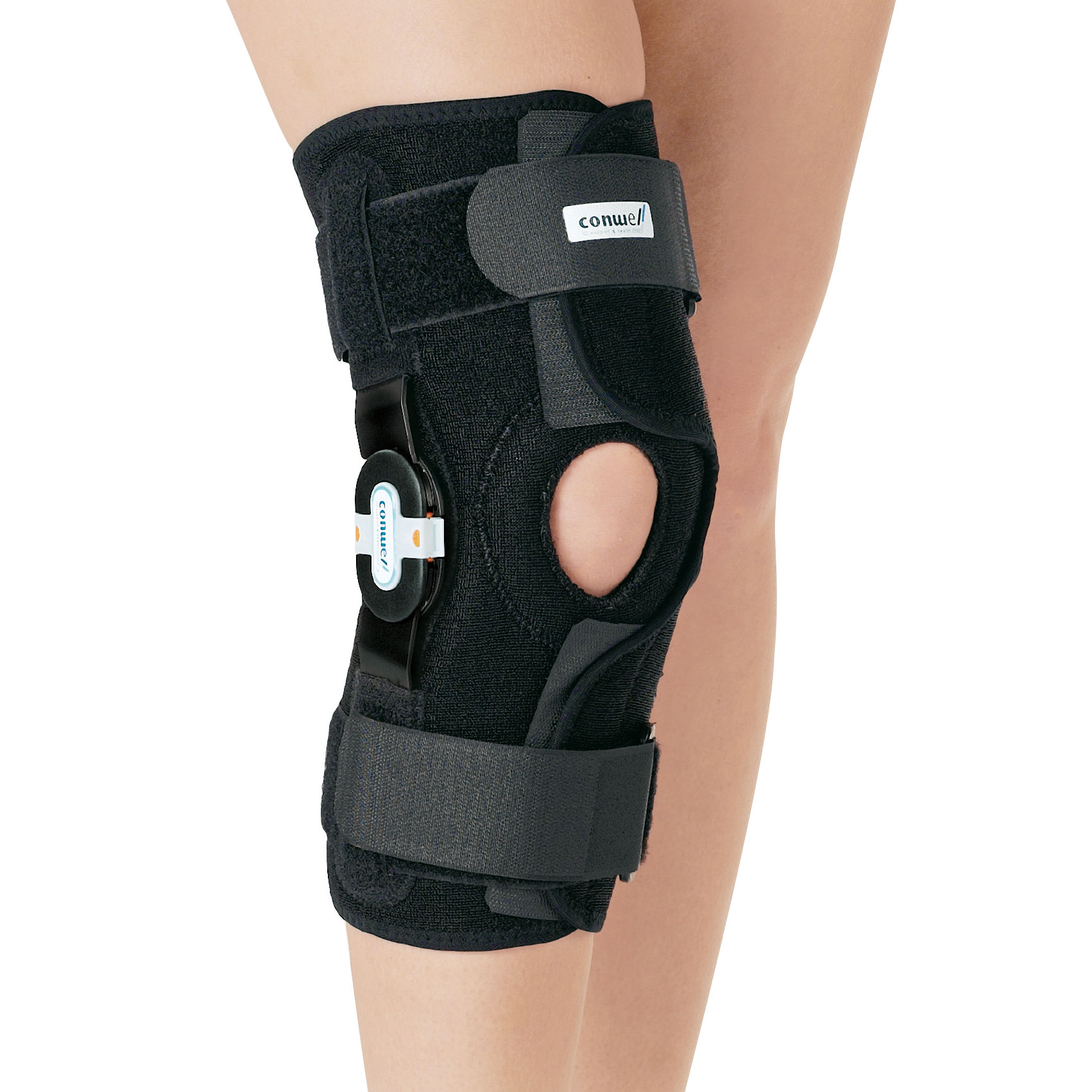

COOLMAX^® fabric Line ROM HINGED KNEE BRACE is designed to offer support to ligament and meniscus tear and sprain.

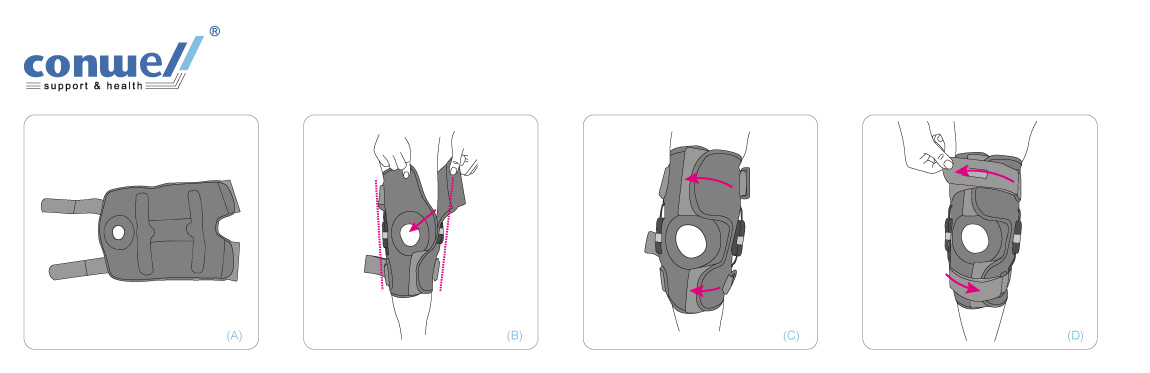

❶ Unfasten all the hook and loop fasteners (Fig. A).

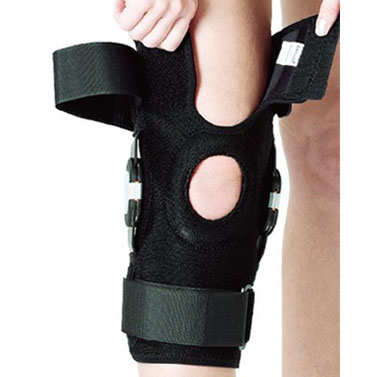

❷ Center patella opening on the kneecap and make sure the hinges are positioned on both sides of the kneecap  (Fig. B).

❸ Wrap and secure the upper and lower fasteners on the brace to desired tightness  (Fig. C).

❹ Secure the upper and lower straps, thread through the buckles and secure the hook and loop closures until desired level of support is achieved  (Fig. D).

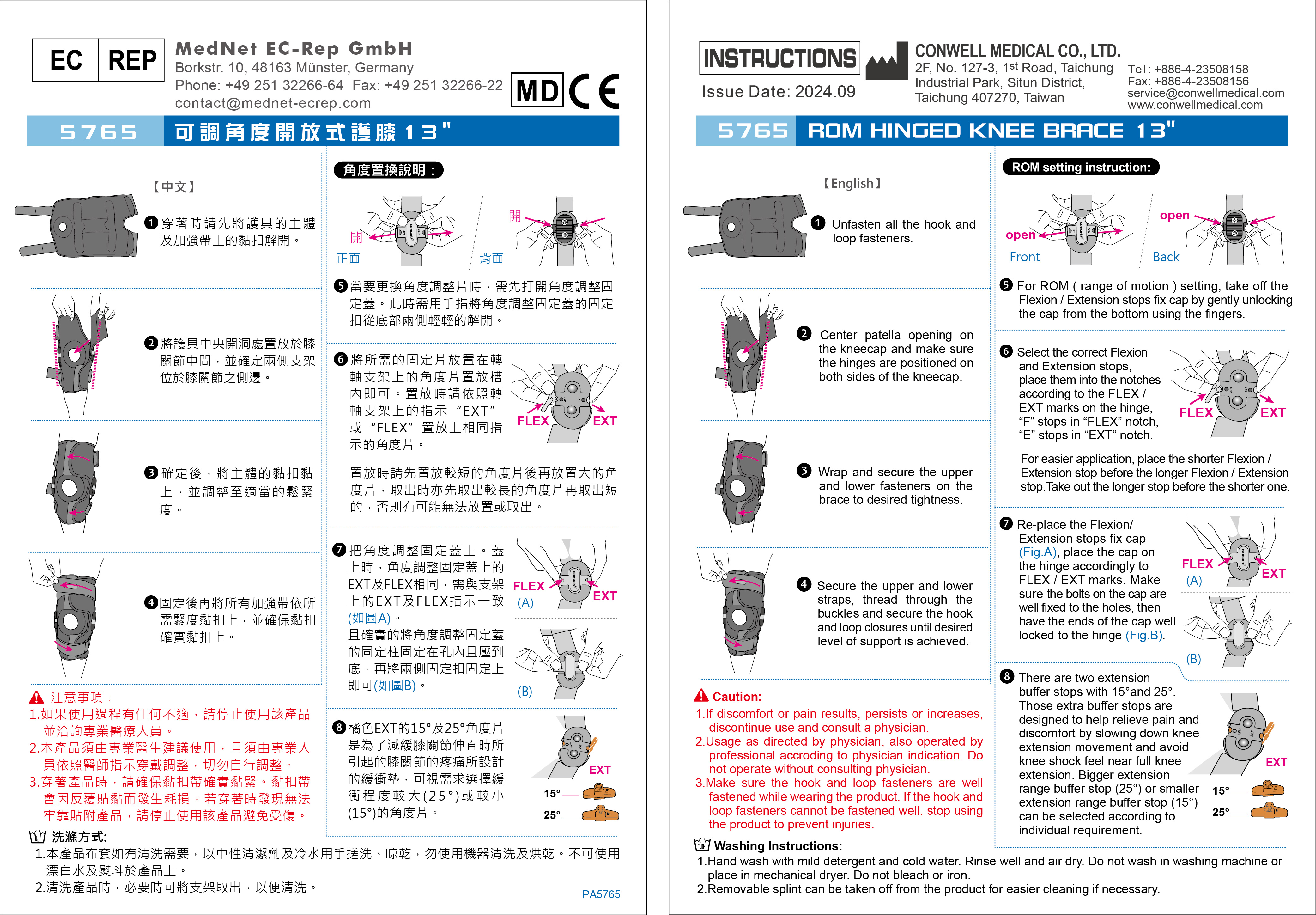

ROM setting instruction:

❺For ROM ( range of motion ) setting, take off the Flexion / Extension stops fix cap by gently unlocking the cap from the bottom using the fingers(Fig. E).

❻Select the correct Flexion and Extension stops, place them into the notches according to the FLEX/EXT marks on the hinge,“F” stops in“FLEX” notch, “E”stops in “EXT” notch. For easier application, place the shorter Flexion / Extension stop before the longer Flexion / Extension stop. Take out the longer stop before the shorter one(Fig. F).

❼Re-place the Flexion / Extension stops fix cap (Fig. G)., place the cap on the hinge accordingly to FLEX / EXT marks. Make sure the bolts on the cap are well fixed to the holes, then have the ends of the cap well locked to the hinge (Fig. H).

❽There are two extension buffer stops with 15°and 25°. Those extra buffer stops are designed to help relieve pain and discomfort by slowing down knee extension movement and avoid knee shock feel near full knee extension. Bigger extension range buffer stop (25°) or smaller extension range buffer stop (15°) can be selected according to individual requirement(Fig. I).



---

Caution:

1.If discomfort or pain results, persists or increases, discontinue use and consult a physician.

2.Usage as directed by physician, also operated by professional accroding to physician indication. Do not operate without consulting physician.

3.Make sure the hook and loop fasteners are well fastened while wearing the product. If the hook and loop fasteners cannot be fastened well. stop using the product to prevent injuries.

Washing Instructions:

1. Remove foam liner from hinges for hand wash. using a mild detergent and cold water. air dry. Do not wash in washing machine or place in mechanical dryer. Do not bleach nor iron.

2. The splints are removable, please remove the splints before washing.
